Intended Use

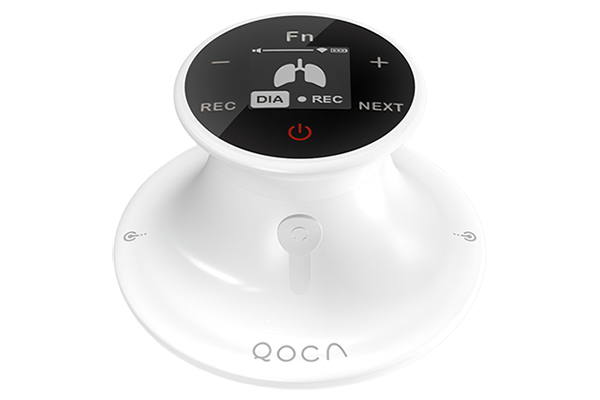

The QOCA® Wireless Digital Stethoscope combines digital stethoscope functionality with single-lead ECG measurement. Designed for ease of use by medical professionals, it enables the assessment of heart, lung, arterial, and internal organ sounds while simultaneously performing ECG monitoring.
The collected data can be amplified, recorded, visualized, and transmitted in real-time. It is automatically synced to a hospital- based cloud and its dedicated app, supporting various applications such as telemedicine, interdisciplinary consultations, medical training, and clinical research.

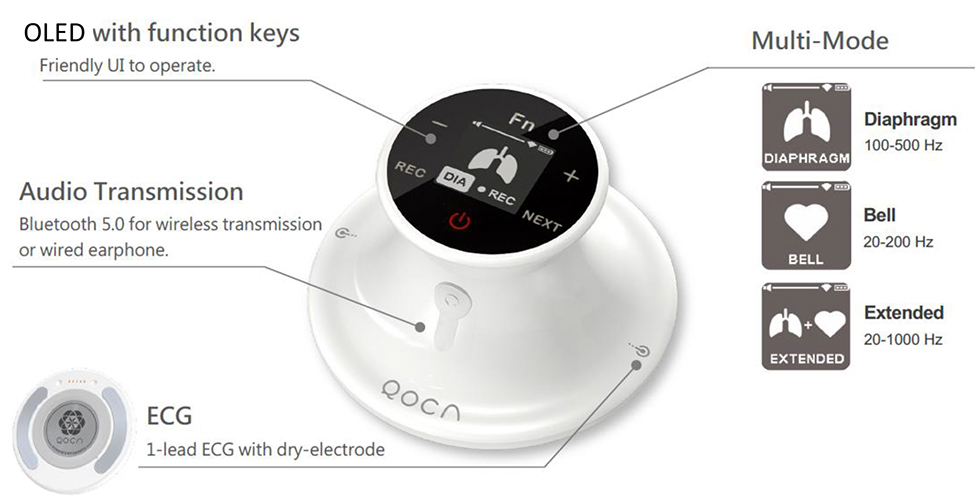

Product Functions
Product Features
Efficient
Collect acoustic sound and 1-lead ECG simultaneously.
Clear
Sound clarify with 24x amplification and ambient noise cancellation.
Intuitive
User-friendly interface, touch button to easily toggle between multi-mode.
Visible
Sound wave visualization for a wide range of applications, mobile app support.
Intelligent
Digital data for AI murmur analysis to assist diagnosis and patient risk identification.
Wireless
Auscultation results are transmitted via built-in Bluetooth for recoding, sharing, and teaching.

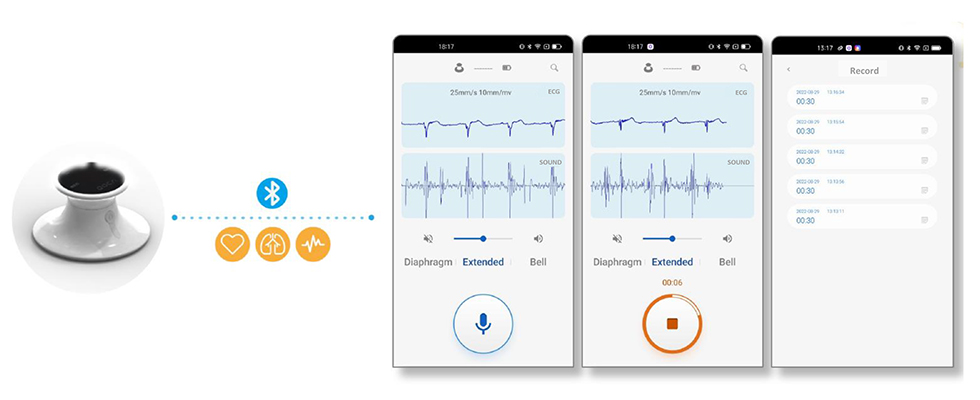

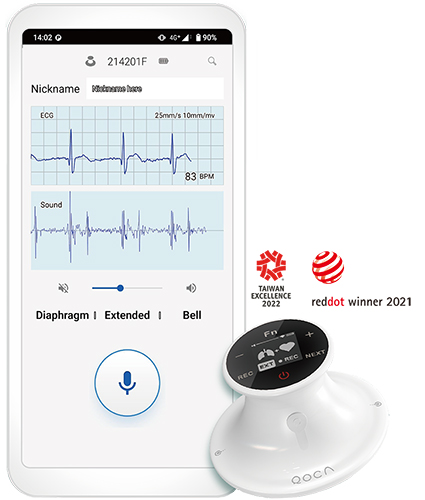

Mobile Application

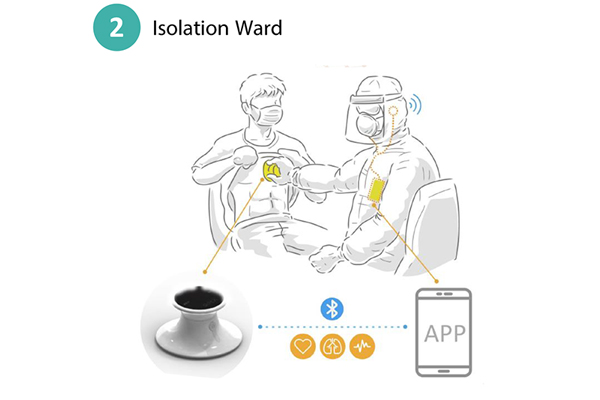

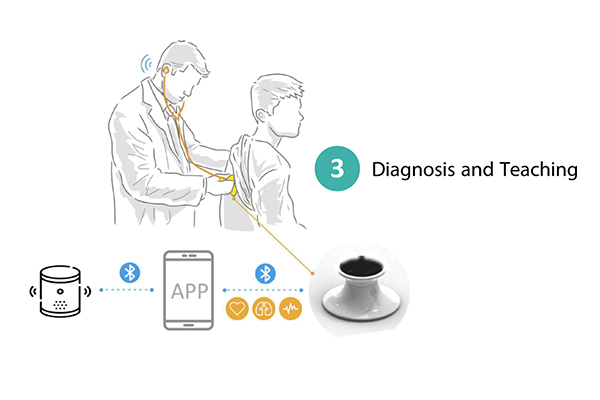

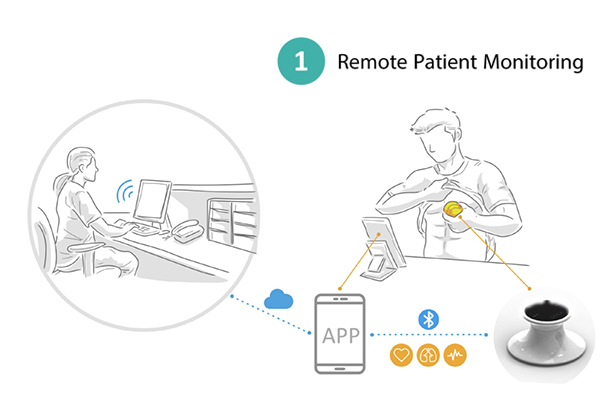

Usage Scenarios
Product Specification
MODEL
Q-steth-w1

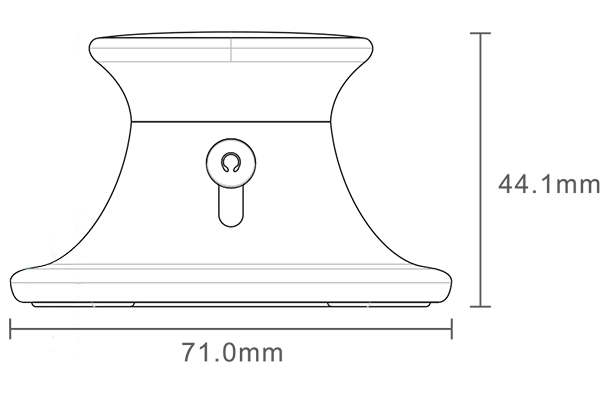

Dimension
71.0mm (Diameter) x 44.1mm (Thickness)
Weight
100 g
Audio Sample Rate
8000 Hz
Frequency Response
20 Hz ~ 1000 Hz
Mode
- Diaphragm (100-500 Hz)
- Bell (20-200 Hz)
- Extended (20-1000 Hz)
Sound Volume
Up to 24x amplification
Diaphragm
Replaceable floating diaphragm
ECG
Dry electrode, 1-lead, sampling rate 256 Hz
Connectivity
Bluetooth 5.0
Battery Life
3-hour continuous recording
Record time
30s per measurement
Recording Mode
Event recording (on demand)
Storage
12-hour recording
Order Information
Catalogue No.
Q-steth-w1
Product Name
QOCA Wireless Digital Stethoscope
Content
- Stethoscope x 1

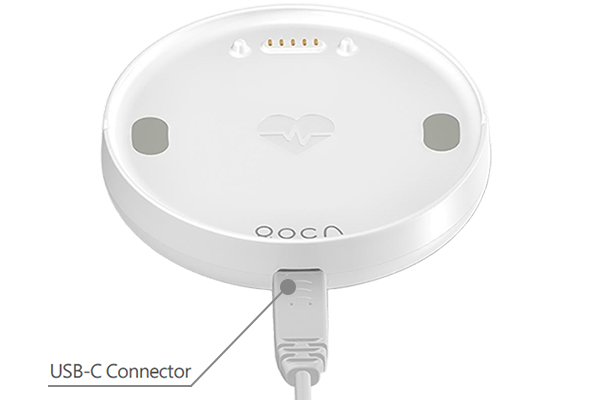

- Charger x 1
- USB type-C cable
Package
- 1 PC/Box
- 125mm x 123mm x 84mm
- 150 g
